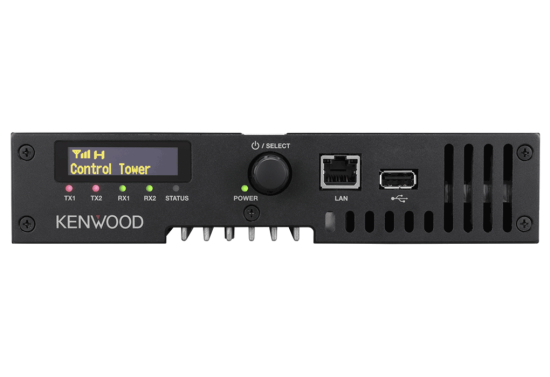

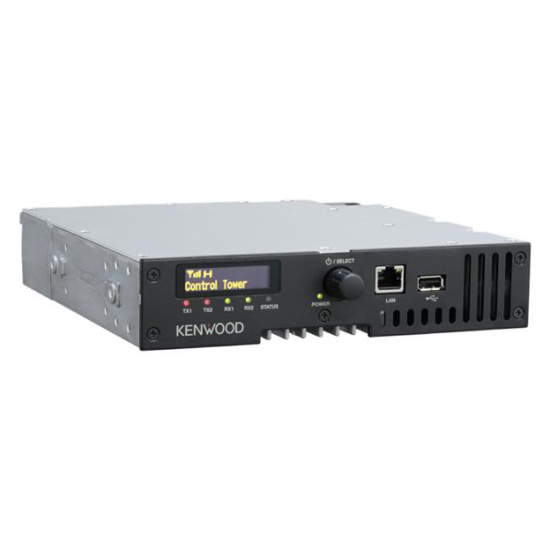

NXR-1800 UHF
Multi-Protocol NEXEDGE or DMR
.png)
.jpg)
.png)
.jpg)
NXR-1800 UHF
Awaiting delivery
Multi-Protocol NEXEDGE or DMR
- Multi-Protocol NEXEDGE or DMR UHF Digital and FM Conventional Repeater / Base Station
- Analogue FM and DMR digital mode of operation even on the same channel
- Frequency UHF range: 400-470MHz
- Programmable channel spacing in analog operation mode 12.5KHz/15KHz/20KHz/25KHz and 6.25KHz/12.5KHz in digital
- 32 channels
- 19" Rack Mount Design
- 1.71-inch OLED Display
- "Base Station" or "Repeater" Mode Operation
- Dual Digital Protocol: DMR Tier II / NXDN Conventional
- USB-A connector for audio accessories
- External In/Out Pin from DB25
- Non-repeat Simplex / Semi-Duplex Mode for Analog and NXDN Digital
- Built-in IP Network Adapter
- Multicast Routing support
- IP Remote Management (Monitor / Control / Programming / Test Console for voice)
- Multi-Site Conventional IP Network up to 16 sites (Analog and Digital)
- Built-in AMBE+2™ Vocoder
- FDMA - Very narrow 6.25 kHz & narrow 12.5 kHz bandwidths< /li>
- TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth
- Call Interruption (DMR)
- DMR-ETSI TS 102 361-1, -2 , -3
- NXDN- ITU-R M2014.3
- Each repeater is equipped with DC power cable with fuses (15A) 4 m., fuse box, short and long type clamps , strengthening hardware, set of legs and handles, set of screws and instructions for use
