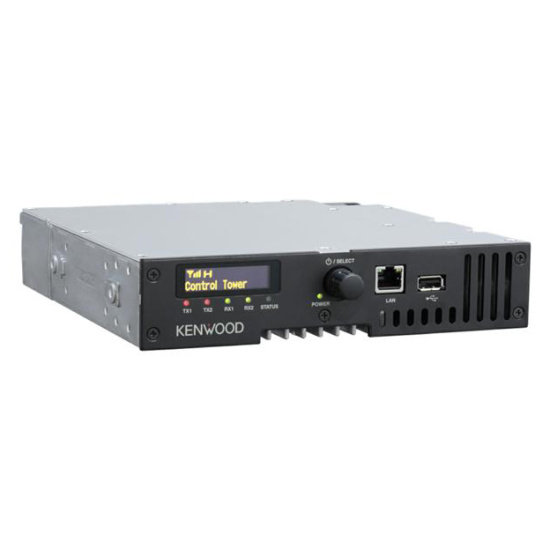

NXR-1700 VHF

Multi-Protocol NEXEDGE or DMR

NXR-1700 VHF
Share Tweet

NXR-1700 VHF

Awaiting delivery

Multi-Protocol NEXEDGE or DMR

  • Multi-Protocol NEXEDGE or DMR VHF Digital and FM Conventional Repeater / Base Station
  • Analogue FM and DMR digital mode of operation even on the same channel
  • Frequency VHF range: 136-174MHz
  • VHF power: 1-50W
  • Programmable channel spacing in analog operation mode 12.5KHz/15KHz/20KHz/25KHz and 6.25KHz/12.5KHz in digital
  • 32 Channels
  • 19" Rack Mount Design
  • 1.71-inch OLED Display
  • "Base Station" or "Repeater" Mode Operation
  • Dual Digital Protocol: DMR Tier II / NXDN Conventional
  • USB-A connector for audio accessories
  • External In/Out Pin from DB25
    • < li> Non-repeat Simplex / Semi-Duplex Mode for Analog and NXDN Digital
  • Built-in IP Network Adapter
  • Multicast Routing support
  • IP Remote Management (Monitor / Control / Programming / Test Console for voice)
  • Multi-Site Conventional IP Network up to 16 sites (analog and digital)
  • Built-in AMBE+2™ Vocoder
  • FDMA - Very narrow 6.25 kHz & narrow 12.5 kHz bandwidths
  • TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth
  • Call Interruption (DMR)
    • < li> DMR-ETSI TS 102 361-1, -2, -3
  • NXDN- ITU-R M2014.3
  • Each repeater is equipped with a DC power cable with fuses (15A ) 4m., fuse box, short and long type clamps, strengthening hardware, set of legs and handles, set of screws and instruction manual
