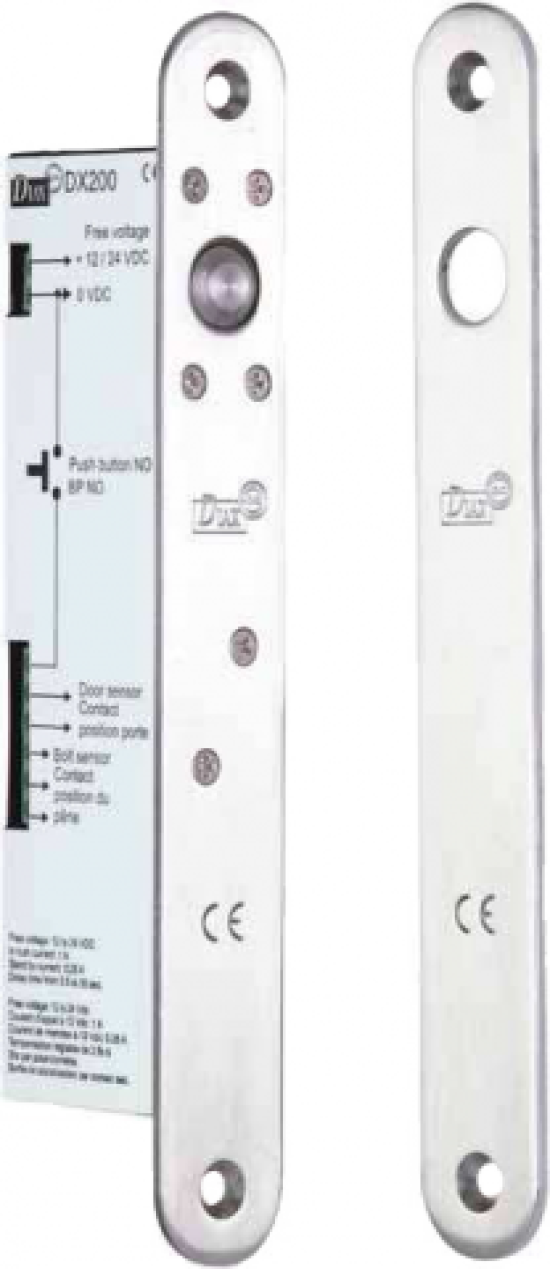

DX200

Available

Solenoid Bolt Lock

The DX200 is a fail safe entry level solenoid bolt, with features normally found in more expensive units.
Manufactured in stainless steel with lock and door status monitoring as standard, the DX200 integrates a “spinning” bolt to prevent sawing.

• Adjustable open time with potiometer (3.5 to 30 seconds)
• Fail safe (power to lock)
• Door and lock status monitoring
• 14MM bolt, dead locking and spinning bolt to prevent sawing
• Compact
• Stainless steel face plate and strike plate
• Terminal connerctors
• Monitoring:
  • Door status closed and opened
  • Bolt status lock and unlock
• Dry outputs
• Input voltage: 12 to 24V DC (free voltage no jumper)
• Consumption:
  • In rush current 1.4A 12V DC ** Standby 250mA 12V DC
  • In rush current 560mA 24V DC ** Standby 140mA 24V DC
