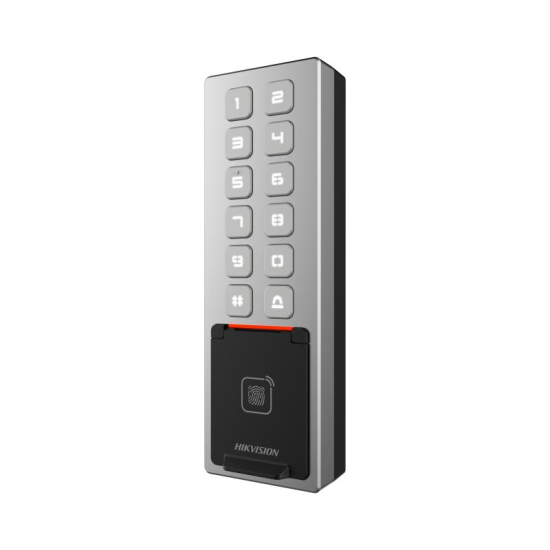

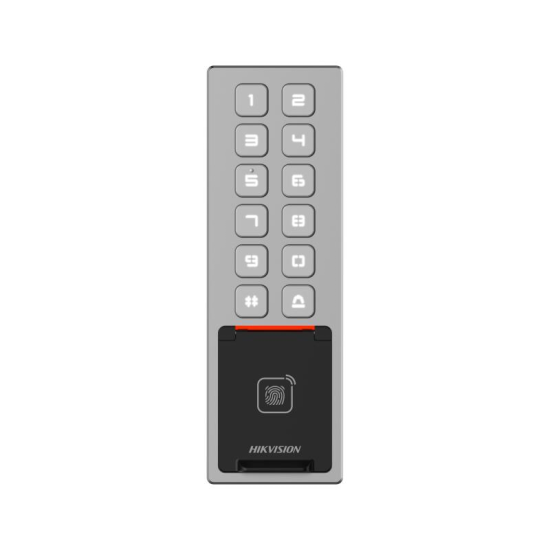

DS-K1T805MBFWX

Standalone access control terminal, built-in Mifare 13.56Mhz card reader and fingerprint reader

DS-K1T805MBFWX
DS-K1T805MBFWX
Share Tweet

DS-K1T805MBFWX

Awaiting delivery

Standalone access control terminal, built-in Mifare 13.56Mhz card reader and fingerprint reader

  • Standalone access control terminal
  • Built-in Mifare 13.56Mhz card reader
  • Built-in fingerprint reader
  • Supports remote management via Hik-Connect mobile app
  • Built-in buzzer
  • Different authorization modes (card/PIN code/fingerprint/bluetooth)
    • n
  • The terminal can be configured via a web interface via a laptop or mobile device
  • 1x RJ-45
  • Wi-Fi 2.4GHz
  • 1x Wiegand (output only)
  • 1x RS-485
  • 1x door relay
  • Exit button
  • Tamper
  • 1x door contact input
  • 2x alarm inputs
  • 1x alarm output
  • Capacity for 3,000 fingerprints, 10,000 cards, 100,000 events
  • Protection level: IP65
  • Vandal resistance: IK08
    • < li>Power supply: 1A 12-24VDC
  • consumption: <12W
  • Dimensions: 57.7x177x34.6mm
