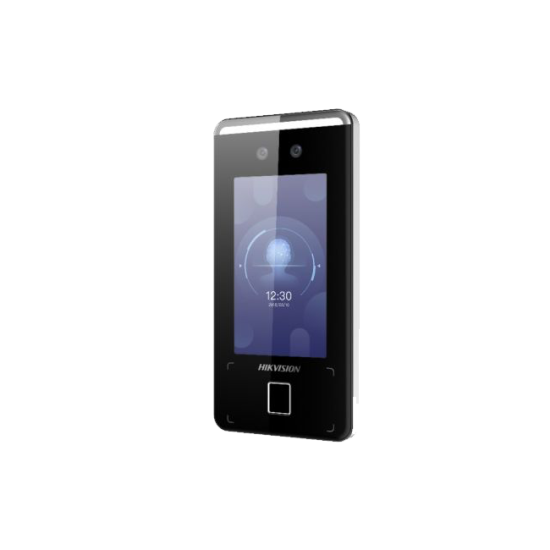

DS-K1T341AMF-S

Available

Terminal for access control by facial or fingerprint recognition and Mifare cards

The terminal for access control by facial or fingerprint recognition. The DS-K1T341AMF-S has a built-in Deep learning algorithm that supports fast and high-accuracy face identification. Additionally, the built-in fingerprint reader and Mifare card reader support its application in situations requiring access control with a higher degree of security - financial institutions, IT companies or specialized industries

• Two-way audio with internal monitor and head station of IP intercom system
• Supports 6 time control statuses, including check-in for check-in, check-out, sign-in after or out for break/ business meeting, start and end of overtime
• Built-in fingerprint reader
• Built-in Mifare card reader for control per access
• Memory for 1500 faces, 1500 fingerprints, 1500 cards and 150,000 events
• Configuration via web client
• Supports several Language: English, Thai, Russian, Spanish, Arabic, Indonesian and Vietnamese
• Supports ISAPI and EHome 5.0 protocols
• Supports QR code access
• Remotely opens the door and starts live view via Hik-Connect
• 4.3“ touchscreen
• 720p facial recognition camera
• 2 lenses – one visible light lens and an infrared lens - MinMoe facial recognition terminals will only grant access when both lenses detect the same face, and determine if the face is real and not a printed image. This anti-fraud technology makes access control management much safer and prevents most attendance fraud.
• Face recognition distance: 0.3m to 1.5m
• Face recognition distance: 0.3m to 1.5m
li>
• Deep learning algorithm with artificial intelligence
• Face recognition time ? 0.2 s / user
• Degree of accuracy of facial recognition ≥ 99%
• Storage of captured images
• Transmits card and user data from or to the client software via TCP/IP protocol and saves the data to the client software
• Import photos from a USB flash drive to the device or export photos, events, to a flash drive via USB port
• Stand-alone operation
• Manage, search and setting data,after local logging into the device
• Connects to one external access control card reader via RS-485 protocol
• Connects to access control controllers or readers via Wiegand protocol
• Connects with security module for providing door control via RS-485 protocol to avoid door opening when the terminal is destroyed
• Supports EHome 5.0 (ISUP 5.0) and ISAPI protocol
• Configurable via web browser
• Compact dimensions and elegant design
• Operating system: Linux
• Time for 1: N face recognition ? 0.2 s
• Intuitive working time control interface
• Face recognition distance from 0.3m to 1.5m
• 1x USB port, 1x electric lock control, 1x door status input, 1x exit button input, 1x RS-485
• TCP / IP communication interface: 10/100/ 1000 Mbps, self-adaptive
• Power supply: 12 V, 1.5 A, 18 W
• Operating temperature: -30 °C to 60 °C
• Operating humidity: 0 to 90% (non-condensing)
• Dimensions: 172.5 mm × 83.2 mm x 22.7 mm
• For indoor/outdoor surface mounting
